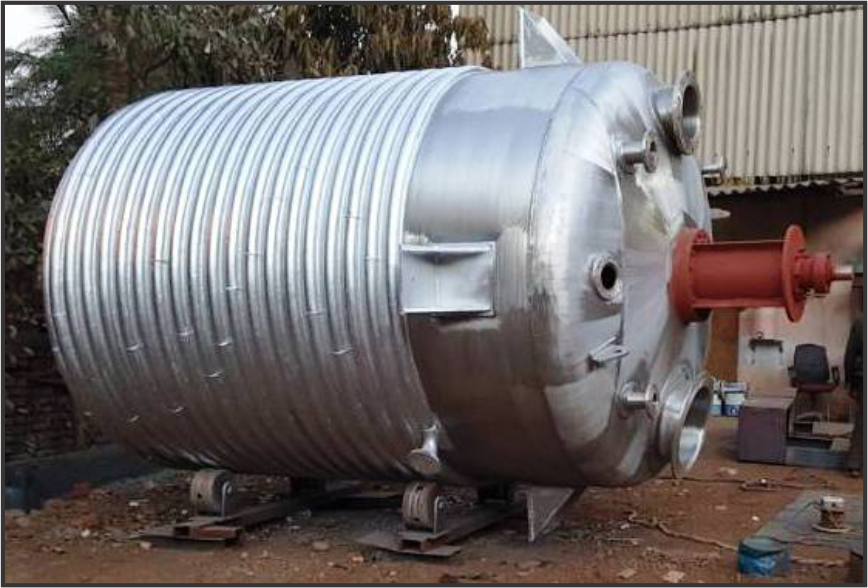

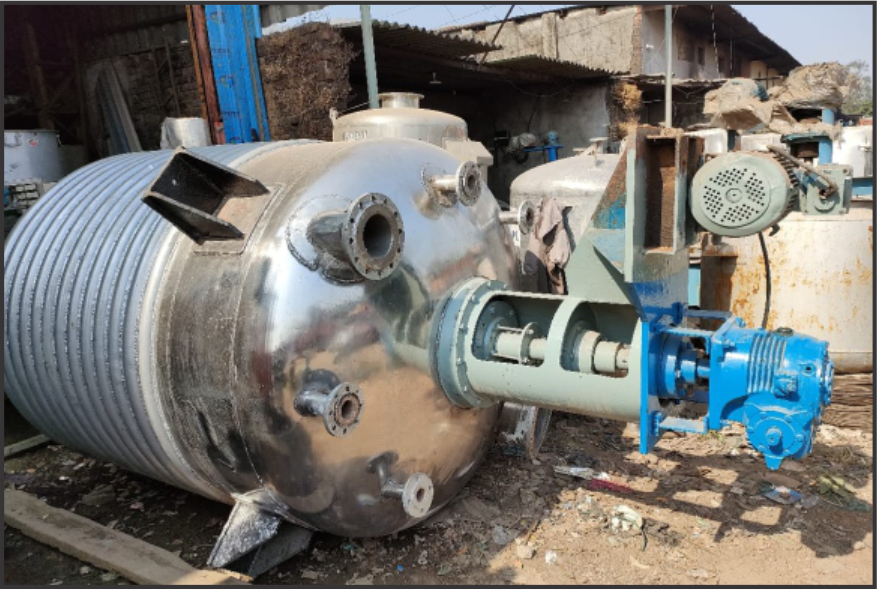

Reactor · SS316

We are instrumental in producing a wide range of industrial reactors that serve diverse industrial requirements. Specially used for chemical and pharmaceutical Industries, these industrial reactors are fabricated to accuracy using quality material. We have been manufacturing a comprehensive assortment of Vertical Reactors that can be constructed either in M.S or S.S. Stirrer like Anchor, Propeller, Turbine etc with different RPM are provided as per customer's requirement.

ASME compliant · custom nozzles · full vacuum rating

                Min.Working volume
1000 L

                pressure
10 bar / 145 psi

                max temp
280°C / 536°F

                agitation
magnetic drive

Technical specifications

Capacity (Liters)	Shell			Dish	Shaft	I/D	Heating / Cooling systems				THK	No. of Turn on Shell	No. of Turn on Dish	Motor	Gear
	I/D	Height	THK	THK			Jacket			Limpet Pipe Size (NB)
							SHELL		DISH
							Height	THK	THK		(SCH)
1000	1020	1250	6	8	60	1120	1100	6	8	65	40	8	3	5	V.400
2000	1310	1500	6	8	65	1410	1300	6	8	65	40	10	4	7.5	V.500
3000	1500	1700	6	8	70	1600	1500	8	10	65	40	11	5	7.5	V.600
4000	1600	2000	6	8	75	1700	1800	8	10	65	40	14	5.5	10	V.600
5000	1690	2250	6	10	85	1790	2100	8	10	65	40	16	6	12.5	V.600
8000	2020	2500	8	10	90	2120	2300	10	12	80	40	16	6	15	V.700
10000	2260	2500	8	10	100	2360	2300	10	12	80	40	16	6.5	15	V.700
12000	2380	2700	8	10	110	2480	2500	10	12	80	40	17	7	20	V.800
15000	2530	3000	10	12	120	2630	2750	12	14	80	40	20	8	25	V.1000
20000	2610	3750	10	12	120	2630	2750	12	14	80	40	8	30	V.1200
25000	2800	4100	12	14	130	2900	3300	12	14	80	40	27	10	30	V.1200

Nested columns: Shell (I/D, Height, THK) · Dish (THK) · Heating (Jacket / Limpet)
